FPF Fuel Pump W/ Regulator For 2002-2006 Victory Crusier All models Replace # 2520344

Fuel Pump FactorySKU: FP-404-FS-212-PR-010

Price:
$129.99
Stock:
In stock

Description

FPF replacement fuel pump are designed to meet or exceed OEM specifications. Our pump features upgraded bushing, turbine impeller and Japanese armature electric motor which will ensure max performance and long lasting durability.

Fitment.

2002 DELUXE CRUISER ALL OPTIONS (V02CD16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2002 DELUXE TOURING CRUISER ALL OPTIONS (V02TD16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2002 STANDARD CRUISER ALL OPTIONS (V02CB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2002 TOURING CRUISER ALL OPTIONS (V02TB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2003 CA CLASSIC CRUISER ALL OPTIONS (V03CB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2003 CA TOURING CRUISER ALL OPTIONS (V03TB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2004 CA TOURING CRUISER ALL OPTIONS (V04TB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2005 CA TOURING CRUISER ALL OPTIONS (V05TB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options
2006 CA TOURING CRUISER ALL OPTIONS (V06TB16) - Fuel System, Fuel Tank, Lines & Throttle Body /All Options

Features

Meet or exceed OEM performance and durability

Drop in replacement design

Improved internals like bushing, turbine impeller and Japan armature electric motor for better
performance and durability

Advanced pressure relief valve to insure the correct PSI

Noise Output: QUIET
Flow: 100-120 Liter Per Hour, at 3.0Bar/13.5V
Voltage: 12V min.

Package include:

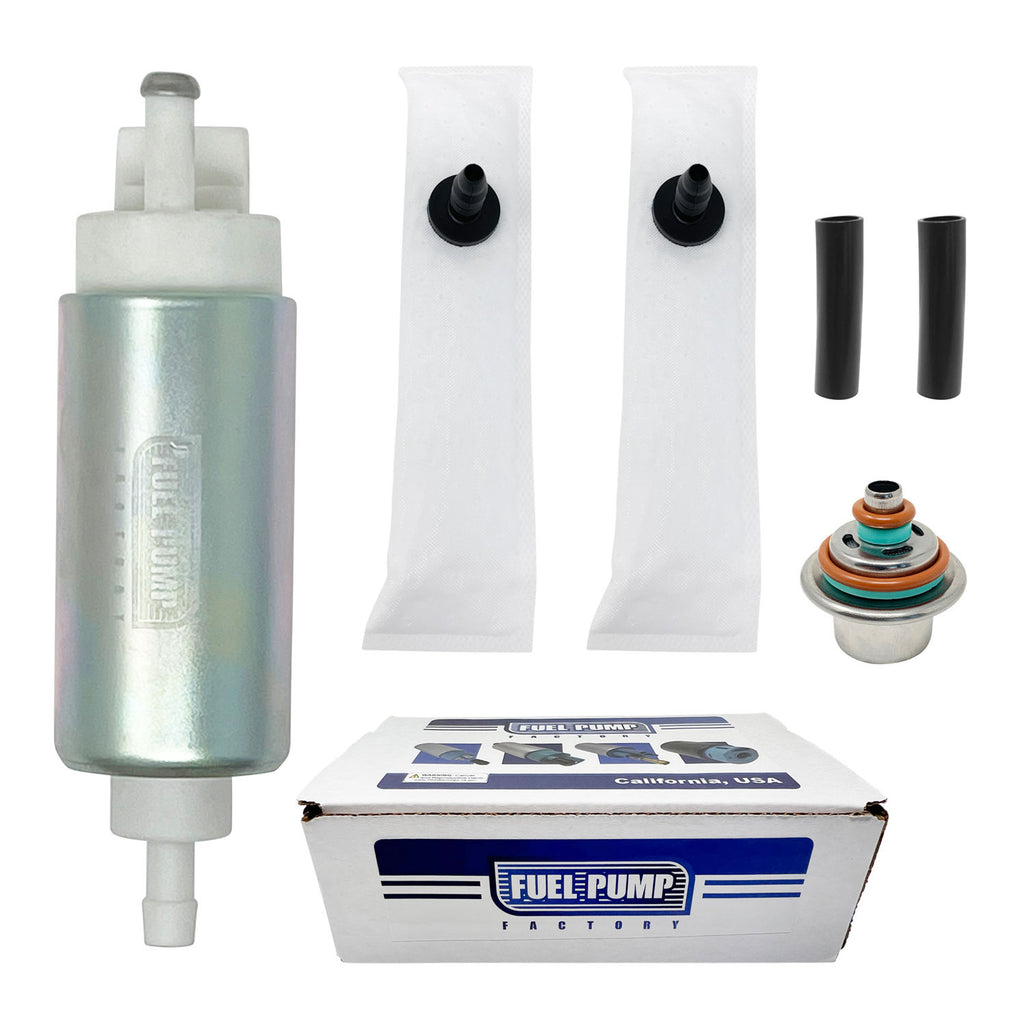

* Fuel pump and strainer with accessories.

Customer Reviews

Based on 6 reviews
33%
(2)
17%
(1)
33%
(2)
0%
(0)
17%
(1)
C
Charles

Payed a licensed mechanic to install it. And after install fuel pump will turn on. Will not send no fuel, and regulator does not work/fit

S
Scott L. (Ooltewah, US)
Great, but not a perfect fit...

I bought this for my 2022 V92C and while you do have to re-use quite a few of the original parts to make this kit complete, they don't show as coming with it, so it's not like they told you it was going to be complete, but just want people to be aware that this is not a complete kit. I was able to re-use most of my original gasket/seals, but you'll also need to purchase (at least) new gaskets for the fuel tank access plug, as the original ones will not be re-usable.
Now for my reason of giving it 4 stars instead of 5.
The gaskets/seals it did come with (on the pressure regulator and where the pump output fitting is) were too big for my factory assembly and no matter how hard I tried (force and lubrication), they would not go into place. Not a big deal as I just needed to file them down a bit to make them fit, but it was a bit of pain and would have been nice to know in advance instead of after hooking other parts up to it.
The other problem I had, and this might just be a rare instance, is that assembled the whole thing and got the tank back on the bike, only to find that while the fuel pump ran strong, I wasn't actually getting any fuel. I tried priming it MANY times and still no fuel, so I had to take the entire thing apart and remove the pump again. I then put the fuel pickup lines directly into fuel jugs and manually started the pump multiple times only to hear it run, but not have any fuel going through the pump. On probably the 10th time, I heard a loud "pop" and it started spraying fuel like it should. I don't know if it was an air bubble or something wrong with a diaphragm internally, but after that, everything worked perfectly.

C
Clint M. (Fulton, US)

FPF Fuel Pump W/ Regulator For 2002-2006 Victory Crusier All models Replace # 2520344

l
leonard p. (Idaho Falls, US)
Great prices

Loved the price and shipping was super fast.
I’m still waiting for the oem tank grommets so I haven’t installed it yet.

B
Brad w./.N.S. (Halifax, CA)
Fuel pump, for victory

Fuel pump pressure don't come up too 52lbs but bike does run . My ordering threw fed x was more . Payed for there fastest service available but still had to pay another 26:00$ on top of first agreed price and to top it off I had to drive 2 hours from my home to pick it up from fed x. Wasn't impressed FedEx ! Please get it together for your Canadian customers
